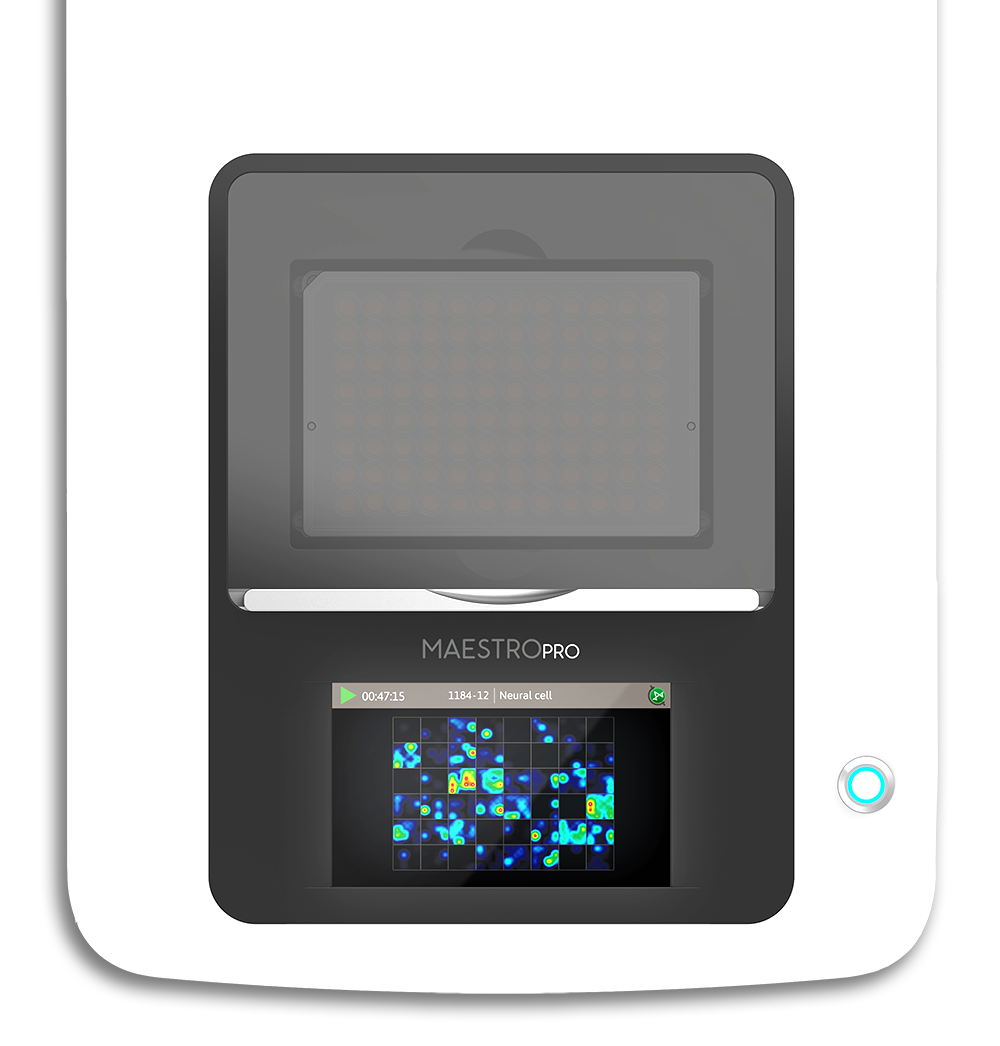

    Maestro Pro Product Image
  • Image
    Axion BioSystems Maestro Pro MEA system
  • Image

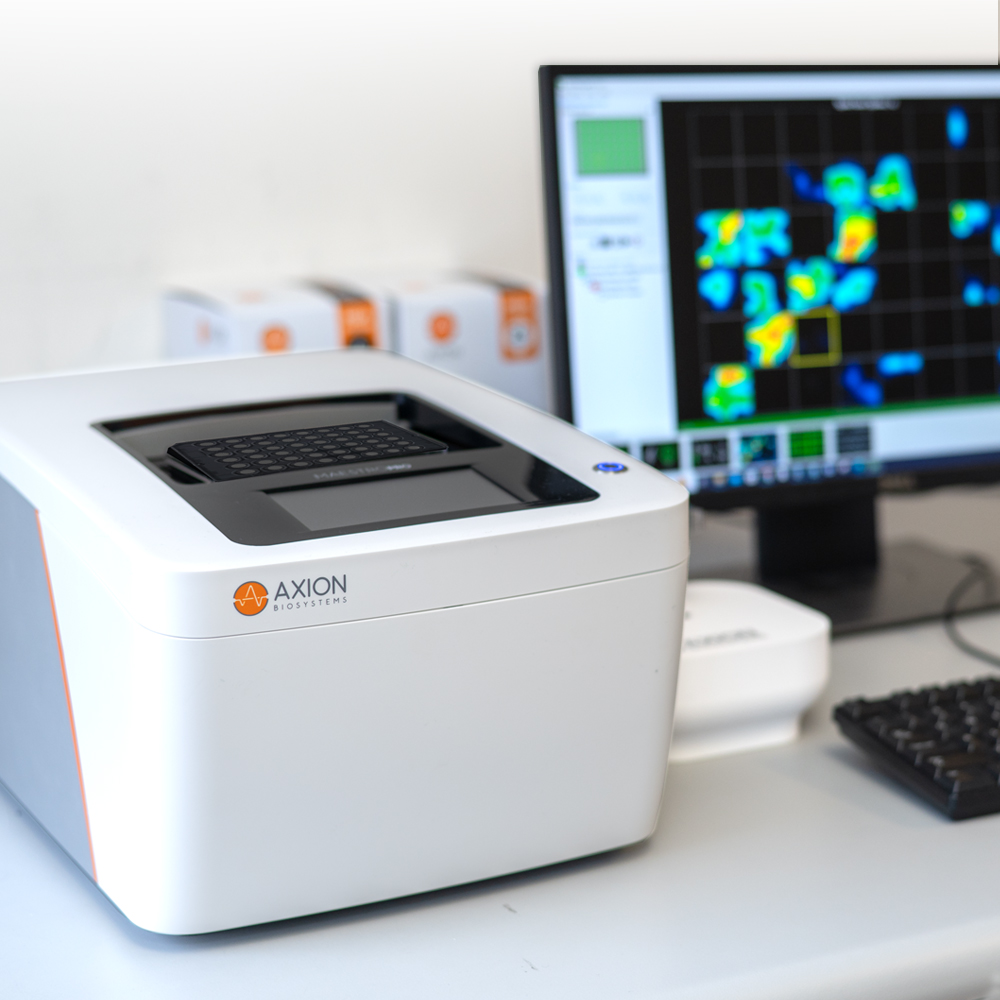

    Maestro Pro multiwell MEA system in a lab
Request Information

The Maestro Pro multiwell microelectrode array (MEA) and Impedance system is our most advanced offering, designed for the workload of larger labs.  Record from our 6-, 24-, 48-, and 96-well MEA plates, and 96-well impedance plates.

Maestro Pro allows for non-invasive evaluation of your cells in an easy-to-use in vitro assay. Whether monitoring the intricate, electrical activity of excitable cells (e.g. neurons and cardiomyocytes), or tracking the growth and death of cancer cells, Maestro Pro allows you to investigate the functionality of your cells in a multiwell plate.

Key Features



The complete multiwell MEA system

The evaluation of electrically-active cells has historically been tedious, requiring months of training to painstakingly study single cells in low throughputs. By culturing a network of cells over the high electrode count arrays available in each well of our MEA plates, Axion BioSystems’ Maestro Pro multiwell MEA system captures activity across an entire population of cells, with far greater data points per well, detecting activity patterns that would otherwise elude traditional assays. Axion’s contribution to establishing microelectrode array (MEA) technology as an accessible, versatile research tool cannot be defined by a single advantage. It’s the cumulative effect of our commitment to growing our multiwell MEA system to include instruments, accessories and software working in unison.



What is MEA?

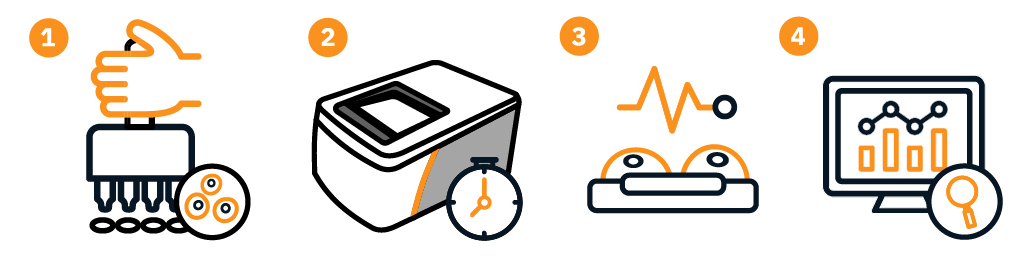

muliwell MEA system cell culture steps



MEA means microelectrode array and is a method of recording activity from electrically active cells, such as neurons or cardiomyocytes.  Axion’s microelectrode array (MEA) plates have a grid of tightly spaced electrodes embedded in the culture surface of each well (Figure A). Electrically active cells, such as neurons or cardiomyocytes, can be cultured over the electrodes (Figure B). Over time, as the cultures become established, they form cohesive networks and present an electrophysiological profile (Figure D). The resulting electrical activity, spontaneous or induced firing of neurons, or the uniform beat of cardiomyocytes, is captured from each electrode on a microsecond timescale providing both temporally and spatially precise data.



...and impedance system, all in one platform

Cell-based assays enable rapid evaluation of human biology in vitro, with substantial advantages in throughput and cost over tissue or animal models. However, many cell-based assays are endpoint assays, limited to a single snapshot in time. Axion BioSystems’ Maestro Pro platform also offers impedance-based cell analysis for real-time, continuous, label-free monitoring of your cells. Continuous data reveals the kinetics of cell-cell interactions and cell-drug responses for better mechanistic understanding without the time- and cost-intensive process of repeating multiple endpoint assays.



What is impedance?

Impedance-based cell analysis is a well-established technique for monitoring the presence, morphology, and behavior of cells in culture. Impedance describes the obstruction to alternating current flow. To measure impedance, small electrical currents are delivered to electrodes embedded in a cell culture substrate. The opposition to current flow from one electrode to another defines the impedance of the cell-electrode interface. When cells are present and attached to the substrate, they block these electrical currents and are detected as an increase in impedance.



Impedance live cell analysis steps for TEER and virology

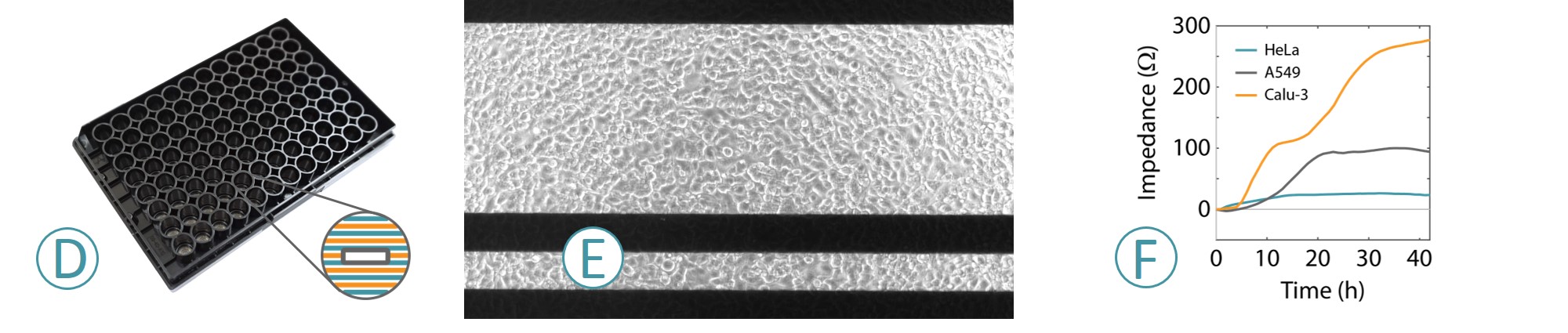

Axion's 96-well CytoView-Z plate has a recording electrode embedded in the culture surface of each well (Figure D). The Maestro Pro system uses impedance measurements (ohms, Ω) to quantify the presence of cells on the electrode. To measure impedance, small electrical signals are delivered to the electrodes (Figure E). Cell attachment, spreading, and cell-cell connections block these electrical signals and are detected as an increase in impedance (Figure F). Impedance is also sensitive to subtle changes in cell conformation, such as those caused by receptor-mediated signaling or cell morphology. Since impedance is non-invasive and label-free, impedance assays can be used to quantify dynamic cellular responses over minutes, hours, and days.



The complete platform

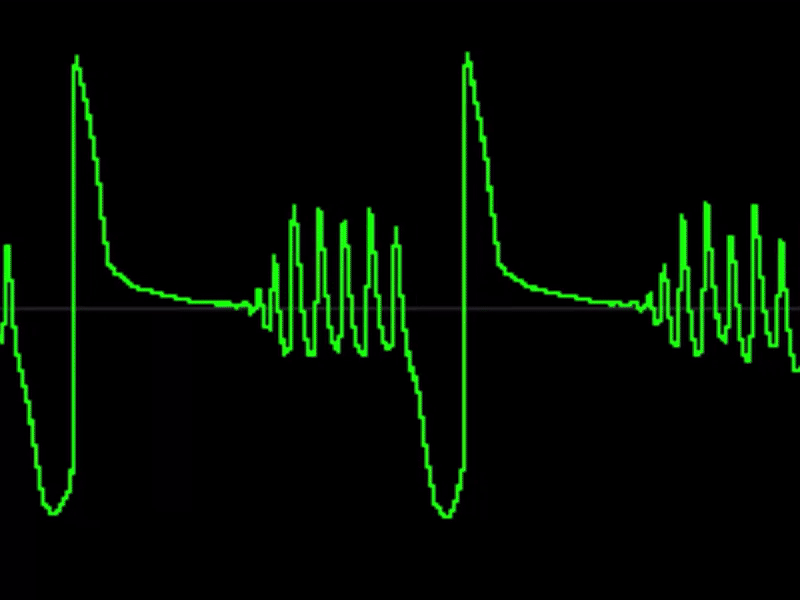

  • Measure cellular activity label-free and real-time - The Maestro Pro detects key parameters of neural network activity, cardiac functionality, and cell growth, death and attachment.

  • Precisely control the cells environment - Cells are a product of their environment. Maestro Pro has a smart environmental chamber that finely controls temperature and CO₂ while rejecting electrical noise and mechanical vibrations.

  • Connect to your network - 768 simultaneous live recordings from your cells with the Neural and Cardiac modules. Now you can understand life’s circuitry label free in real time in 6-, 24-, 48-, or 96-well plates.

  • Continuous cell monitoring - 96 simultaneous live recordings from your cells with the Impedance module. Track cell proliferation, morphology, and viability in real-time.

  • See your cells - Sometimes you just want to look at your cells under a microscope. Maestro’s CytoView patented transparent circuit technology allows cell visualization and assay multiplexing.

  • Control cellular activity - Recreate specific patterns of cellular activity using electrical stimulation or light pulses (with the Lumos optical stimulation system)

  • Start your assay with the push of a button - “One button setup,” means temperature and CO₂ levels automatically adjust on plate docking. Plate usage is logged via an integrated plate barcode scanner for convenient experiment tracking.

  • Monitor the kinetics of your biology on your smartphone - No need to be in lab. With the Impedance module, track changes in cell proliferation, viability, and cell killing over minutes or weeks.



Overview

The Maestro Pro system allows you to capture the complex biology of your cells. Whether monitoring the kinetics of cellular growth and death or recording the activity of excitable cells; the Maestro Pro can help you record it noninvasively, in real time, and with software tools to make analysis quick and painless.

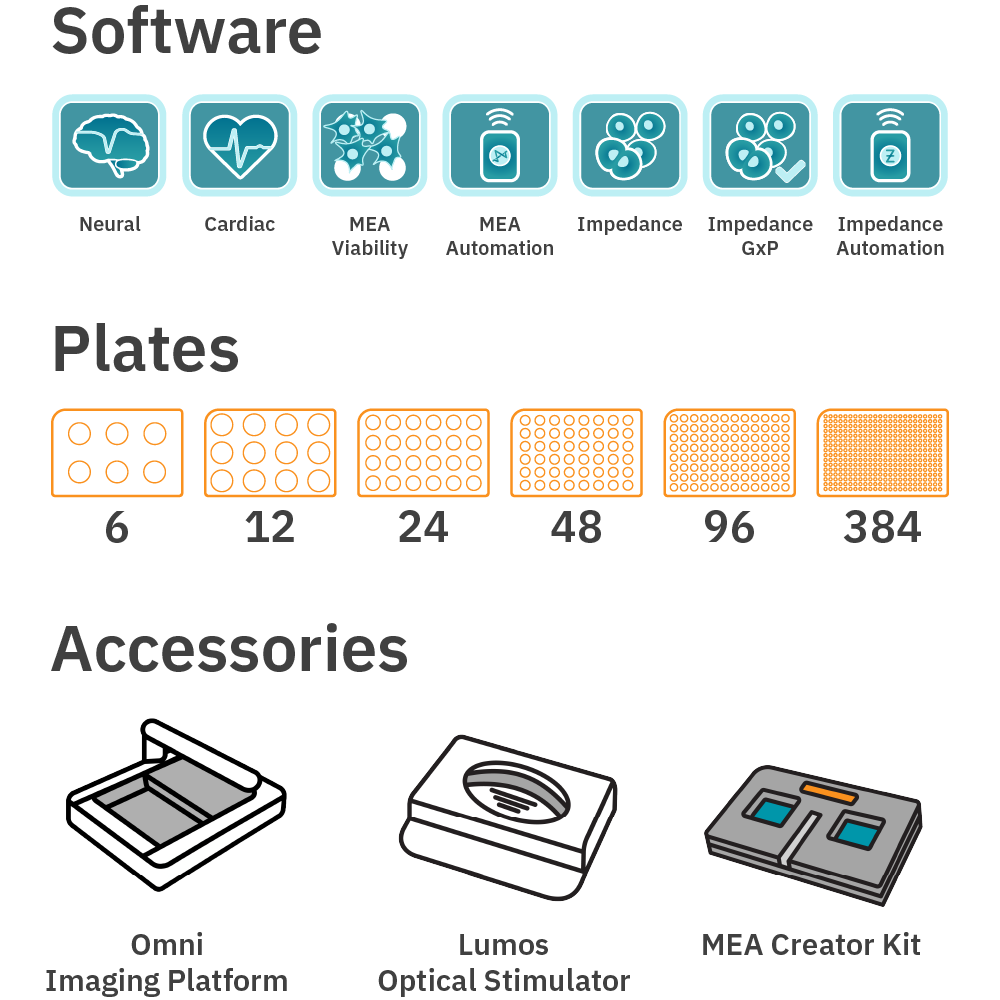

Customize your Maestro Pro system for your assay needs:

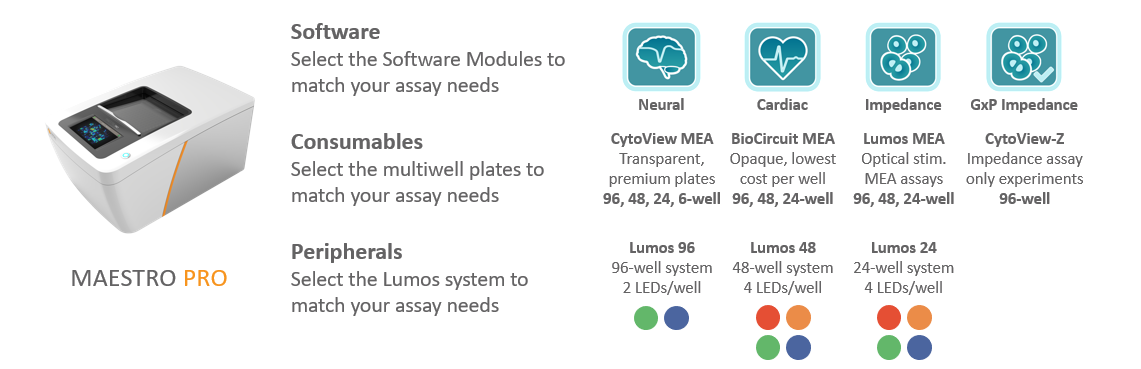

Maestro Pro multiwell MEA and Impedance system compatibility with plates, software, and optogenetics





Multiwell MEA software and live cell assay software

Software

The Maestro Pro platform is available with three software modules: Neural, Cardiac, and Impedance. Select the software modules to match your assay needs:

Neural – Measure the key parameters of neural network function, including activity (are the neurons functional?), synchrony (are the synapses functional?), and oscillation (is the network functional?).

Cardiac – Record the four key measures of functional cardiac performance, label free and in real time in every well of the multiwell plate: action potential (a.k.a. LEAP assay); field potential; propagation; and contractility.

Impedance – Track cell proliferation, morphology, and viability label-free and in real-time. Ideal for immuno-oncology, cytotoxicity, virology, cell migration, cell proliferation, GPCR assays, and many more.

GxP Impedance – Achieve FDA 21 CFR Part 11 compliance in GMP/GLP labs with this version of the Impedance Software Module.

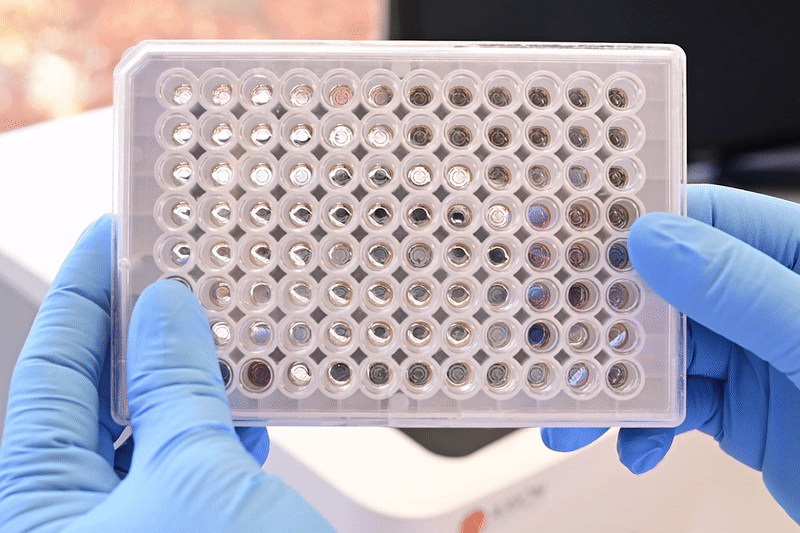

multiwell microelectrode array (MEA) plates

Consumables

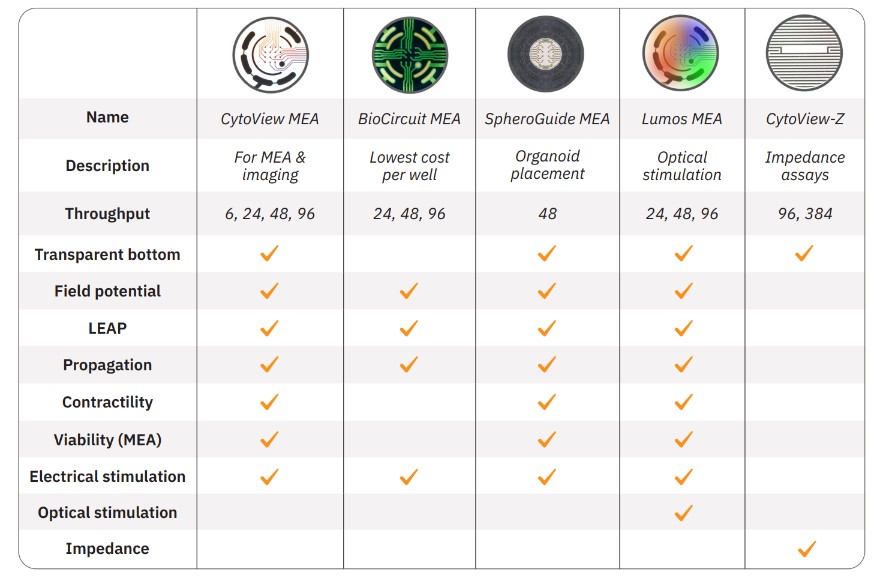

All of Axion’s MEA and impedance assay multiwell plates can be used with the Maestro Pro system. Select the multiwell plates to match your assay needs:

CytoView MEA – The premium Maestro MEA plate with a transparent well bottom for cell visualization and assay multiplexing. Available in 96-, 48-, 24-, and 6-well plate formats.

BioCircuit MEA – Maestro MEA plates with an opaque well bottom delivering high-quality results at the lowest cost per well. Available in 96-, 48-, 24-well plate formats.

Lumos MEA – Maestro MEA plates designed for use with the Lumos system, featuring a transparent well bottom and light-focusing lid. Available in 96-, 48-, 24-well plate formats.

CytoView-Z – The Maestro impedance plate with a transparent well bottom for cell visualization and assay multiplexing. Available in a 96-well plate format.

Lumos optogenetics system

Peripherals

Lumos is a multiwell light stimulation system for optogenetic assays, that pairs with the Maestro Pro. The Maestro Pro platform is compatible with all three formats of the Lumos optical stimulation system. Select the Lumos system to match your assay needs:

Lumos 96 – For use with Lumos MEA 96 plates. The Lumos 96 system has two LEDs per well (green and blue).

Lumos 48 – For use with Lumos MEA 48 plates. The Lumos 48 system has four LEDs per well (red, orange, green and blue).

Lumos 24 – For use with Lumos MEA 24 plates. The Lumos 24 system has four LEDs per well (red, orange, green and blue).
